Yaning Industry Positive Clean Room Contractors Class 100 Hard Wall Clean Booth

Λεπτομέρειες προϊόντων

Τόπος καταγωγής: Dongguan, Guangdong, Κίνα

Μάρκα: YANING

Πιστοποίηση: CE/ISO

Αριθμό μοντέλου: YN-CLB-01

Όροι πληρωμής & ναυτιλίας

Ποσότητα παραγγελίας min: 1 σετ

Τιμή: $4000-6800/set

Συσκευασία λεπτομέρειες: κόντρα πλακέ

Χρόνος παράδοσης: 7 ~ 25 ημέρες με βάση την ποσότητα

Όροι πληρωμής: T/T, Western Union, MoneyGram

Δυνατότητα προσφοράς: 1000 σύνολα/μήνα

Πάρτε την καλύτερη τιμή
συνομιλία τώρα
Λεπτομέρειες προϊόντων
Επισημαίνω:

Hard wall clean booth

,

Class 100 clean room

,

Positive pressure cleanroom contractors

Πλαίσιο:
Αλουμίνιο/υδρ
Τείχος:
Πλεξιγκλάς
Τάξη:
100
Αποτελεσματικότητα:
99,999%
Πλαίσιο ελέγχου:
1 σετ
Παρέχεται υπηρεσία μετά την πώληση:
Οι μηχανικοί είναι διαθέσιμοι σε μηχανήματα εξυπηρέτησης στο εξωτερικό
Πλαίσιο:
Αλουμίνιο/υδρ
Τείχος:
Πλεξιγκλάς
Τάξη:
100
Αποτελεσματικότητα:
99,999%
Πλαίσιο ελέγχου:
1 σετ
Παρέχεται υπηρεσία μετά την πώληση:
Οι μηχανικοί είναι διαθέσιμοι σε μηχανήματα εξυπηρέτησης στο εξωτερικό
Περιγραφή του προϊόντος
Products Description

Clean room is a local high clean environment can provide air purification equipment. It is the most convenient to establish a simple clean room, clean shedmainly by the box, fan, early high efficiency air filter, damping layer, lamps and other components, shell spray. The product can be suspended, but also ground support, compact structure, easy to use. Can be used alone, but a number of connections to form a band clean area. At the same time can be in the general level of clean room in some area need high cleanliness of the place to do some local increase to reduce costs.

Fan from the top of the FFU inhalation of air, the initial effect of the filter, high efficiency filter, filtered clean air in the entire wind surface to 0.45m/s ± 20% of the wind speed sent to the clean shed. The formation of the current layer, so that clean air flow was vertical one-way flow, thus ensuring the work area required cleanliness.

Product Display

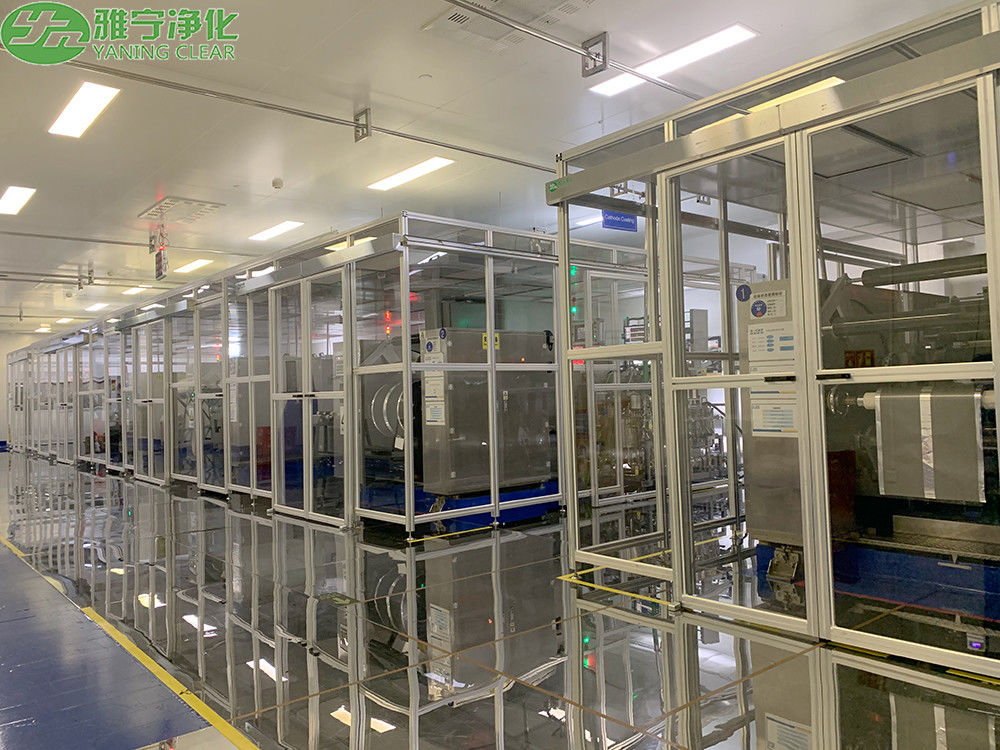

Yaning Industry Positive Clean Room Contractors Class 100 Hard Wall Clean Booth 0
Yaning Industry Positive Clean Room Contractors Class 100 Hard Wall Clean Booth 1
Yaning Industry Positive Clean Room Contractors Class 100 Hard Wall Clean Booth 2
Yaning Industry Positive Clean Room Contractors Class 100 Hard Wall Clean Booth 3

Product Paramenters


Model

YN-CS-23B

YN-CS-34A

YN-CS-68C

External dimension

2100*3100*2590

3100*4100*2590

6100*8100*2590

Work area dimension

2000*3000*2200

3000*4000*1900

6000*8000*2200

Cleanliness

10000Class(ISO6)

10000Class(ISO7)

10000Class(ISO8)

Air velocity

0.3-0.5m/s

0.3-0.5m/s

0.3-0.5m/s

Noise

≤65dB

≤65dB

≤65dB

Vibration Half Peak

≤5um

≤5um

≤5um

Light

40w*2

40W*4

40W*8

Power supply

220V/50Hz

220V/50Hz

220V/50Hz

Material

Framework: epoxy power coated steel/stainless/Aluminum
Wall: Anti-static strip curtain/soft air curtain/Plexiglas

表格宽度最宽为750,超过750的部分及内容均无法展示

Features

1. Can be used alone or in combination.

2. Compared with civil-built or assembly-type 100 clean rooms, less investment, quicker results, easier installation and lower operating costs.

3. Modular structure, easy to improve cleanliness level, strong scalability, and high value of reuse

4. Easy to move (can be installed universal wheel)
